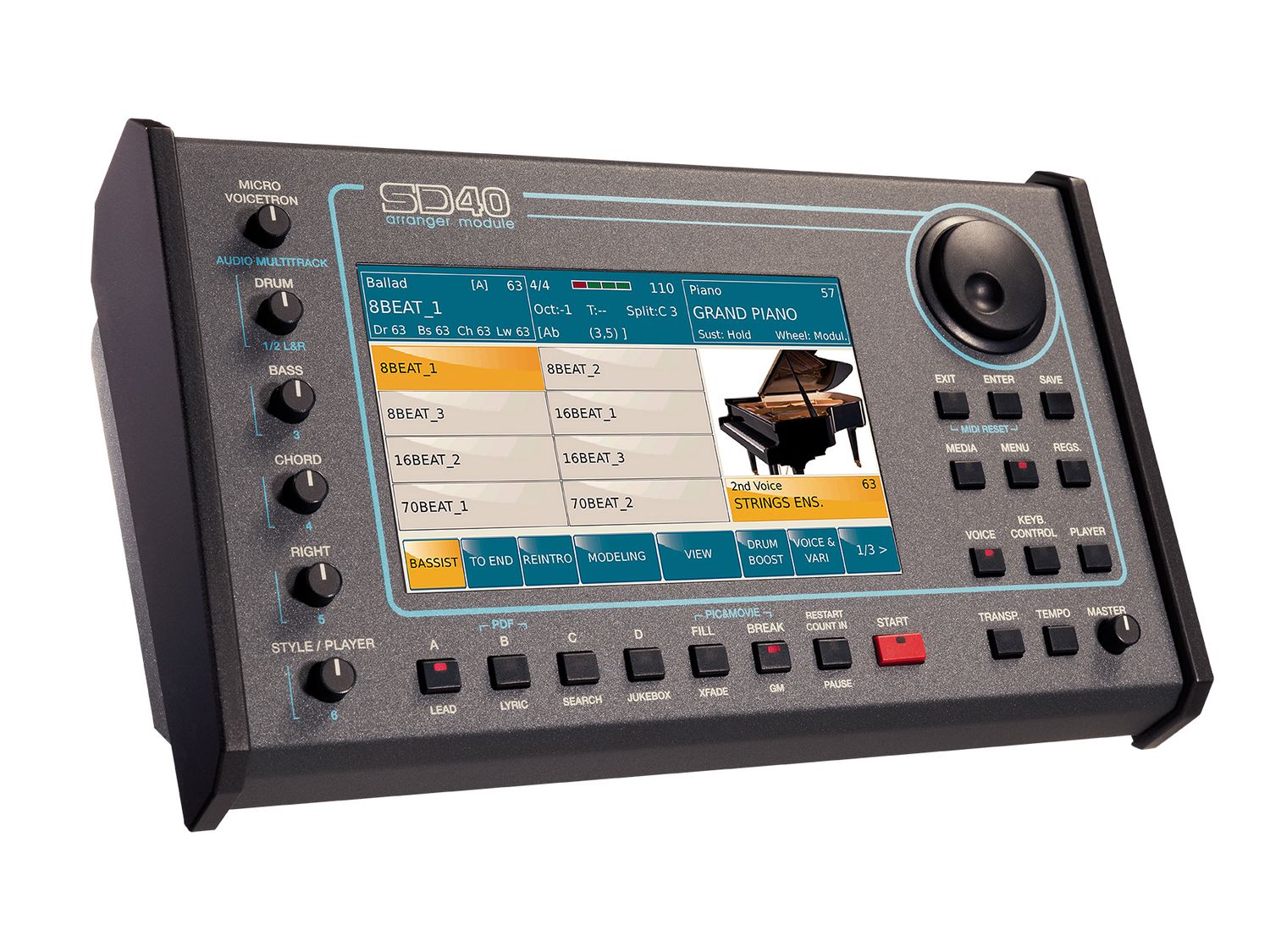

SD40 - ARRANGER MODULE

KETRON SD40 ist ein neues, hochentwickeltes Arranger und Player Modul, das speziell für die Verwendung mit Master Keyboards, Digital Pianos und MIDI Accordions entwickelt wurde. Als Expander-Version des äußerst erfolgreichen KETRON SD7 bietet das SD40 die gleichen musikalischen und technischen Funktionen des Keyboards, mit einer neuen professionellen Sound-Generation, einer enormen Audio Drum Library, Styles der besten KETRON-Tradition zusammen mit Style Modeling, einem besonders vielseitigen Player und modernen multimedialen Möglichkeiten. Dank seiner äußerst kompakten Bauweise ist das SD40 ideal für den weltweit reisenden Profispieler.

POLYPHONY

128 note. Multitimbral 64 parts.

DISPLAY

Lcd color Tft 7. Touch Screen capacitive 800×480 dots. Brightness control.

PLAYER

Files recognized: Wav, Midi, Mp3, Mp4, Avi, Mov, flv, Cdg, Jpg, Txt, Pdf. Functions: Marker. Sync/Next. Autoplay. Lead Mute. GM part. Lyric Off. Cross fade. File Search. Play List. My Folder. Transposer. Time stretching. Metronome Click. Midi Multimix. Song Drum Restyle.

AUDIO MULTITRACK PLAYER

5+1 Audio tracks with separate potentiometers.

JUKE BOX

Playlist, My Folders, SFX Special Effects.

PIC & MOVIE

Jpg & Mp4, Avi, Mov, Flv, Karaoke background, Movie/PDF to RGB, Pic List, Autoshow, DVI: video monitor out, karaoke lyric/Mirror.

MENU

Disk, Midi, Play Modes, Audio Edit, Language, Footswitch, Preferences, Controls, Video, Reg. Set up, Arabic Mode, Micro/Vocal, Mic2/Guitar, juke box, DSP, records.

MEDIA

Internal Storage: SSD Card 16G. Usb: 3 Host+1 device. SD card external.

SOUNDBOARD

668 GM sounds, 5 sound banks, voice list, 48 drum sets + stereo special kit, live drum modeling.

VOICES

368 preset voices, new stereo grand piano, 368 user voice, 2nd voice, V-tone, double up/down, harmony, EFX instert, voice editing.

ARRANGER

260 Styles full Audio Drum and Groove equipped. User Style section. Midi Drum Mixer & Remap. 4 Arranger ABCD. 4 Fill. 4 Break. 3 Intro. 3 Ending. Drum, Groove, Bass, Chords 1-5. Lower 1-2. Auto Fill. Fill to Arrange. To End. Reintro. Key Start. Key Stop. Restart. Count In. Drum Boost. 4 Voice Set. Voice to ABCD. VOice & Vari. 5 User Tabs. V-Tone.

ARRANGER MODES

Pianist (Auto-standard), bassist (Easy, expert), manual bass, bass to lowest.

STYLE MODELING

Interactive Modeling Library with massive audio drums, latin groove, Bass, Piano, Guitar and Orchestral templates.

PLAY MODES

Master Keyboard. Accordion Style and Classic. Guitar mode with Efx (thru Input).

REGISTRATIONS

4 Banks x 1024 Regs. Full Panel and function programming.

DSP

2 x DSP with 2 separate Reverb units, Chorus, Reverb, Flanger, Phaser, Tremolo, Rotary, Echo Delay, Tap Delay, Equalizer, Distorsion, Amp simulator, Compressor, Filter. EFX Insert (54 types), 10 programmable Chains.

RECORDING

HD Recording: 1 stereo track. Loop. Audio edit with cut, normalize. Midi recording with phrase and song.

MICRO 1

XLR Input. Gain Control. Volume. Reverb. Micro On/Off Edit. Talk.

VOICETRON

3 Voice vocalizer. 10 Voicetron presets. 10 Voicetron User.

INSTRUCTION MANUAL

Html on board.

MIDI

In 1 (Gm), In 2 (Keyb). Out. Thru. Midi Set up: Standard, Computer & Sequencer, Keyboard Right, Accordion, Player, Style.

OUTPUT

Left/Right Stereo, Volume Pedal, Micro Out.

MICRO 2

Guitar (Instrument) /Micro2.

HEADPHONE

Stereo Headphone. Aux separate Out Assign (to Drums, Right, Bass, Click).

OPTIONAL

Footswitch 6 or 13, Volume Pedal, Sustain pedal, Hard Case, Bag.

POWER SUPPLY

External 9V-4A.

DIMENSIONS

32x18x10cm. (13×7’1×4 inches)

WEIGHT

2 Kg. (4’4 Ibs)
