Bell Z3 Zonenmixer VCA Input Gate

Stereo Mic, Line Mixer mit Automute & VCA Input Gate

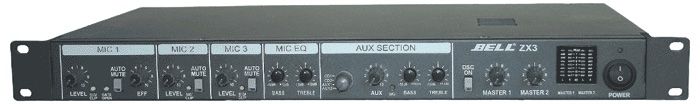

MODEL ZX3

Balanced Microphone Input channels Symmetrische Mikro- phon- Eingangskanäle

EQ / Entzerrung Ch. 1-3

Phantom Power Supply Mic Channels 1-3

Signal / Clip Indicator Gate open/close Ind.

Automute Channel 1-3 Vorrangschaltung

AUX Input Channel CD1,CD2, AUX1,AUX2

EQ / Entzerrung AUX Signal present Indicater

Master 1 Output (Stereo) Master 1 Output (Mono) Master 2 Output

Insert to Master 1 Effect Send / Return

DSC Processor

Gate / Threshold control

Maße (BxHxT) mm Size (wxhxd) mm

ZX3

3 (XLR -Jack Combo) Kan.3 als Mic. - (XLR) und als Stereo Line Kanal belegbar (Jack L&R Inpu)

High / LOW (+-12dB)

48V schaltbar 48V/w/switch

Channels 1-3 Channel 1 (front) w/sense control over Aux Input Channels

Cinch (RCA) Inputs via Input Selector

High / Low (+-12dB) AUX Channel XLR (balanced) L&R Jack (balanced) Jack (balanced) L&R

Jack (break) L&R Jack (Send - Return)

to Master 1 to MIC1 Channel

482x44x300
